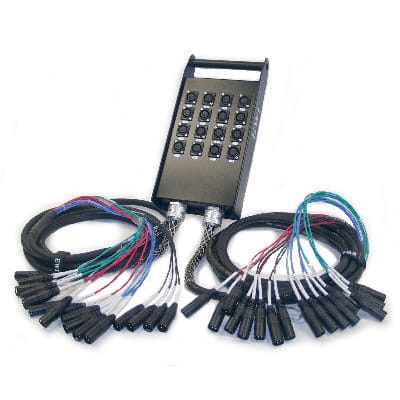

EWI PSX-32S-15-15 (Rental)

From: $20.00

32 Channel (15′ Trunks) Split Snake


We affectionately refer to these as “Poor Man’s Splitter Snakes”, because they are a rock bottom basically simple splitter snake. These snakes do not have splitter transformers, ground lift switches, or multi-pin disconnects. They are simply hardwired Y splits, with basically a stage box and two hardwired short trunks with fantails.

Both fantails and the stagebox connectors are all XLR. These are straight send snakes with no returns. The input panel jacks on the stage box are all Female XLR. The cord ends on the fantails are all Male XLR.

The stage box is very heavy duty and well labeled. Both fantails are ruggedly built, color coded to groups and very well labeled. Both the main trunk and split trunk are constructed with EWI SMC cable which is 32 individual shielded pairs, 22 gauge, high copper purity conductors with double aluminum foil shield and trace wire, which is fairly rugged, lightweight, and very flexible.

Strain relief at the stage box and fantails are provided with mesh grip style hanger at the fantail, and rubber compression aluminum cable clamp at the stage box.

The Female XLR panel jacks are the buttonless “coiled spring style” with composite (non metallic) bodies. The fantail is constructed with EWI ES3MB-GDP (MXLR) black shell with gold contact point connectors.
